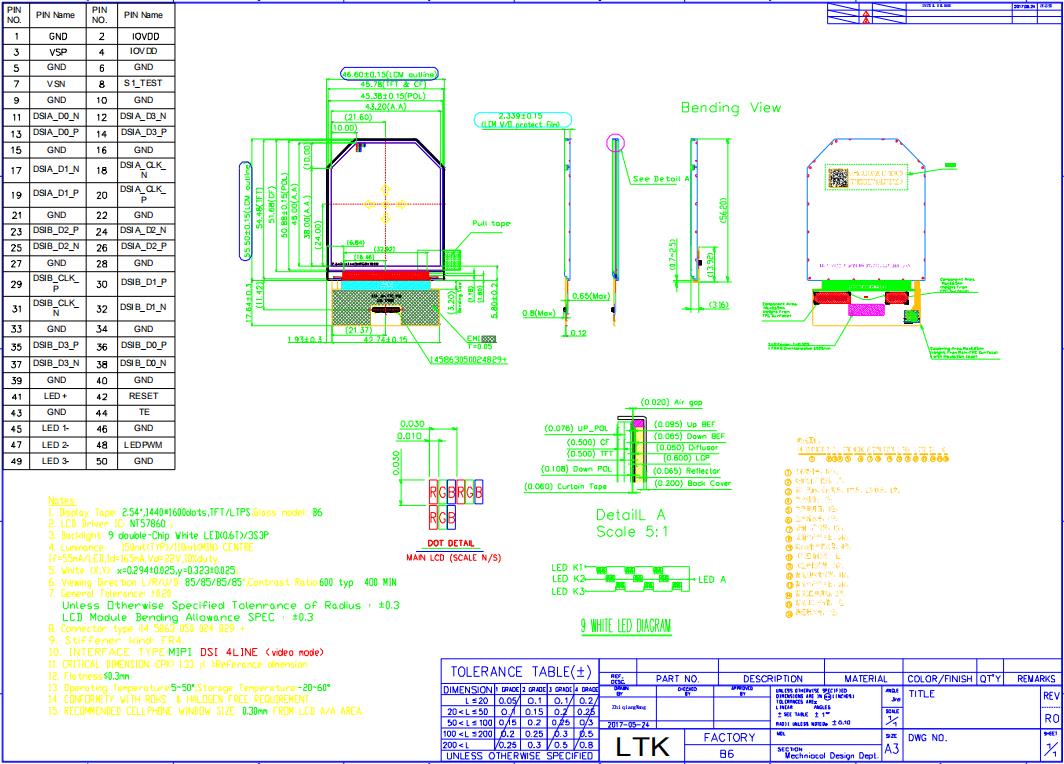

2.54inch Module1440RGB*1600 with MIPI interface TFT display
The 2.54inch TFT-LCD Module is a Color Active Matrix TFT LCD panel using LTPS (Low Temperature Poly-silicon) TFT's (Thin Film Transistors) as an active switching devices.
This module has a 2.54 inch diagonally measured active area with 1440*1600
resolutions (1440 horizontal by 1600 vertical pixel array). Each pixel is divided into RED,
GREEN, BLUE dots which are arranged in vertical stripe and this module can display
16.7M colors.
The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.(E)
- Product Details
|
Model Number |
LTK025P69NV |
|
Size |
2.54'' |
|
Reslution |
1440RGB*1600 |
|
Interface |
MIPI DSI |
|
Outline dimension (mm) |
46.6(H)×55.5(V) × 2.34 (T) |
|
Active area (mm) |
43.2(H) × 48(V) |
|
Brightness |
150 |
|
Display model |
IPS |
