21.5 inch TFT LCD with 1920*1080 resolution LVDS interface 750 nits high brightness display
This specification applies to the 21.5 inch wide Color a-Si TFT-LCD Module LTK215WU30AYL
The display supports the Full HD - 1920(H) x 1080(V) screen format and 16.7M colors (8 bits RGB
data input ). The input interface is Dual channel LVDS and this module doesn’t contain an driver
board for backlight.(W)
- Product Details
Model: |
LTK215WU30AYL |
Size: |
21.5'' |
Cell Type: |
IPS |
Resolution: |
1920*1080 |
Interface: |
LVDS |

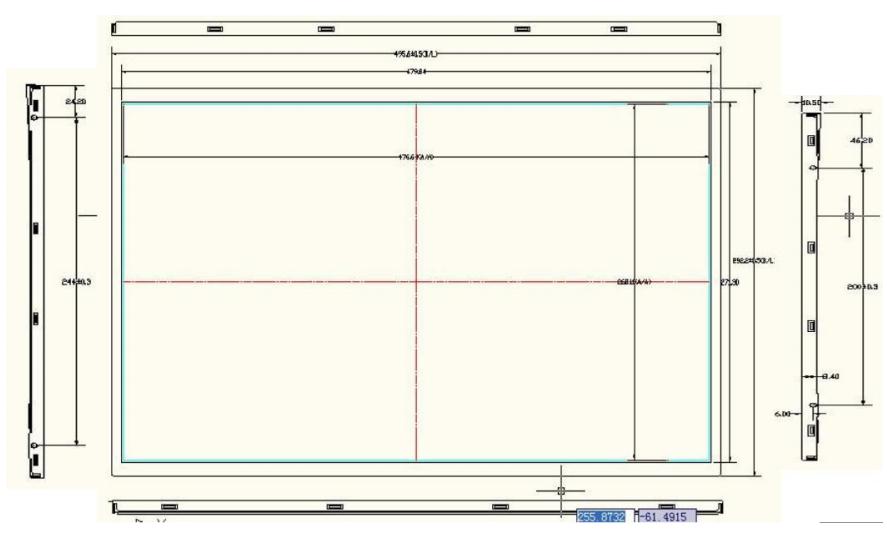

Outline Dimension: |
495.6*292.2*10.5(mm) |
Active Area: |
476.6*268.1(mm) |
