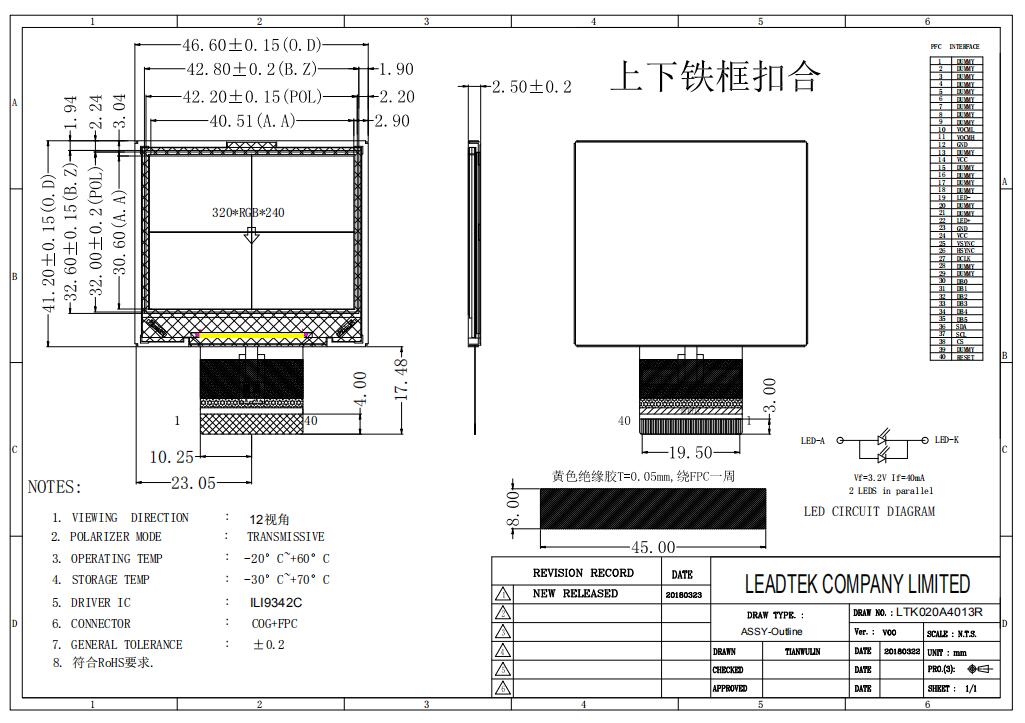

2.0inch small size 320x240 Normally White panel TFT with RGB interface
This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 2.0” contains 320(RGB)X240 dots and can display up to 262k colors.
- Product Details
Display Type: | 2.0''TFT, Normal White |
Module PN#: | LTK020A4013R |
View direction: | 12 O'clock |
Brightness: | 350 nits |
Operating temperature: | -20℃ ~ +60℃ |
Storage temperature: |
-30℃ ~ +70℃ |
