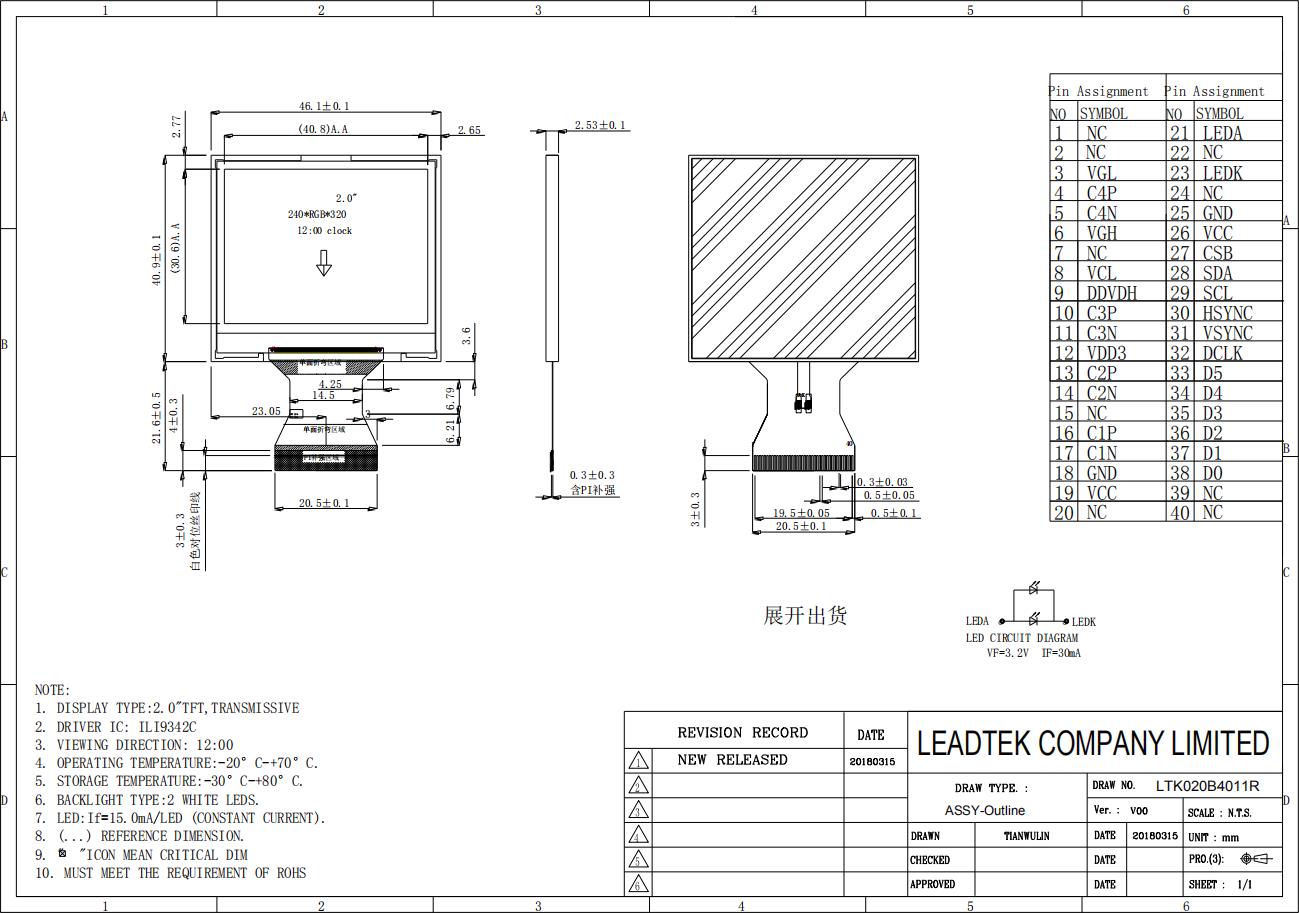

2.0inch Module 320RGB x 240 with 3SPI +6 bit RGB interface TFT display
1. DISPLAY TYPE:2.0"TFT,TRANSMISSIVE
2. DRIVER IC: ILI9342C
3. VIEWING DIRECTION: 12:00
4. OPERATING TEMPERATURE:-20° C-+70° C
5. STORAGE TEMPERATURE:-30° C-+80° C
6. BACKLIGHT TYPE:2 WHITE LEDS
7. LED:If=15.0mA/LED (CONSTANT CURRENT)
8. MUST MEET THE REQUIREMENT OF ROHS（E）
2. DRIVER IC: ILI9342C
3. VIEWING DIRECTION: 12:00
4. OPERATING TEMPERATURE:-20° C-+70° C
5. STORAGE TEMPERATURE:-30° C-+80° C
6. BACKLIGHT TYPE:2 WHITE LEDS
7. LED:If=15.0mA/LED (CONSTANT CURRENT)
8. MUST MEET THE REQUIREMENT OF ROHS（E）
- Product Details
|
Model Number |
LTK020B4011R |
|
Size |
2.0" |
|
Display model |
TN |
|
Resolution |
320RGB x 240 |
|
Interface |
3SPI +6 bit RGB |
|
Outline dimension (mm) |
45.8(H) ×40.86(V)×2.4(T |
|
Active area (mm) |
40.8 (H)×30.6(V) |
|
Brightness |
200 |
