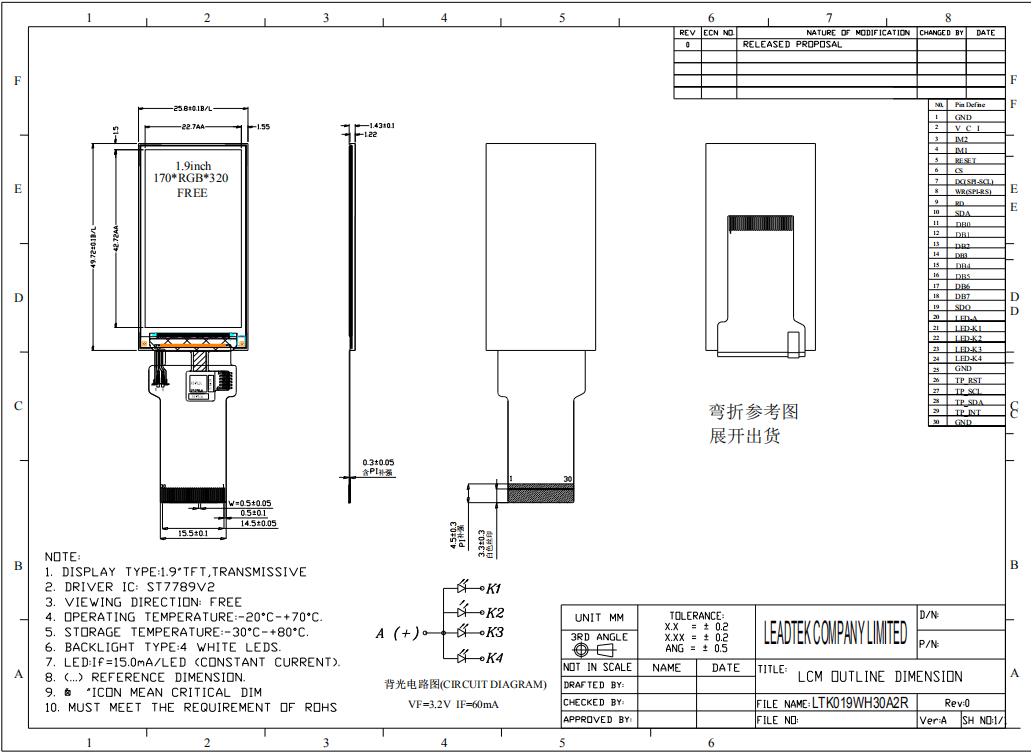

1.9inch Module 170(RGB)X 320 TFT display
This display module is a transmissive type color active matrix TFT(Thin Film Transistor)
liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 1.9”contains 170(RGB)X320 dots and can display up to 262k colors.(E)
- Product Details
|
Model Number |
LTK019WH30A2R |
|
Size |
1.9" |
|
Resolution |
170(RGB)X 320 |
|
Interface |
4-SPI/8bit 8080 |
|
Outline dimension (mm) |
25.8(H)X49.72(V)X1.43(T) |
|
Active area (mm) |
22.7(H)X42.72(V) |
|
Brightness |
330 |
|
Display model |
IPS |
