1.77'' small size high brightness display with MCU interface LCM
This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 1.77” contains 128(RGB)X160 dots and can display up to 262k colors. (C)
- Product Details
| Display Type: | 1.77''TFT, Normal White |

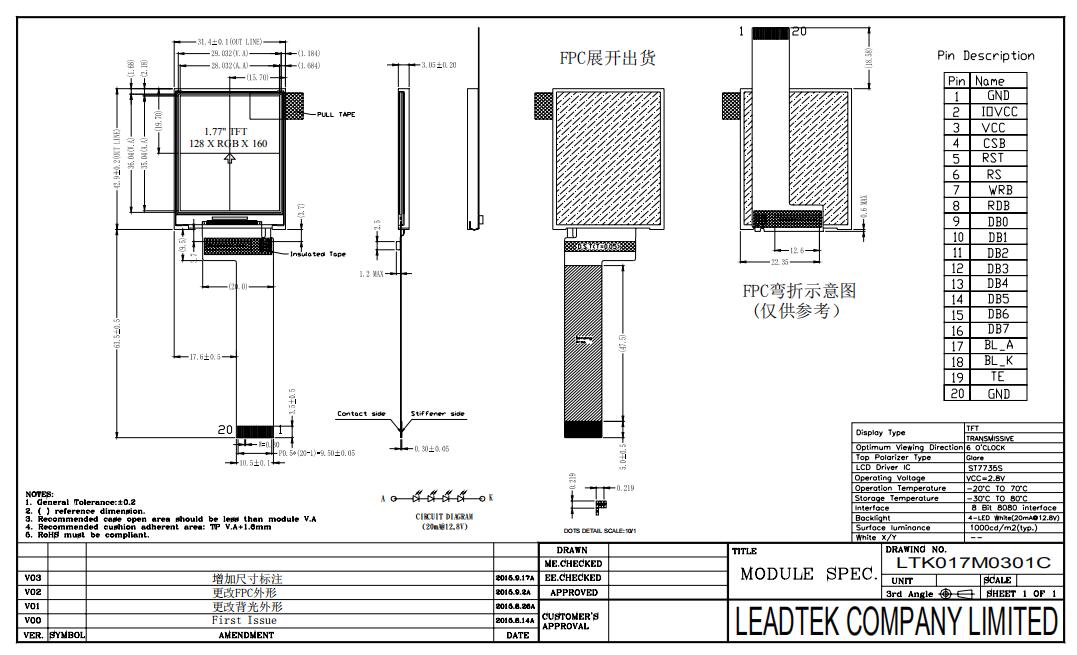

| Module PN#: | LTK017M0301C |
| View direction: | 6 O'clock |
| Brightness: | 1000 nits |
| Operating temperature: | -20℃ ~ +70℃ |
| Storage temperature: |
-30℃ ~ +80℃ |
