170x320 IPS panel 1.9inch small size display with SPI interface

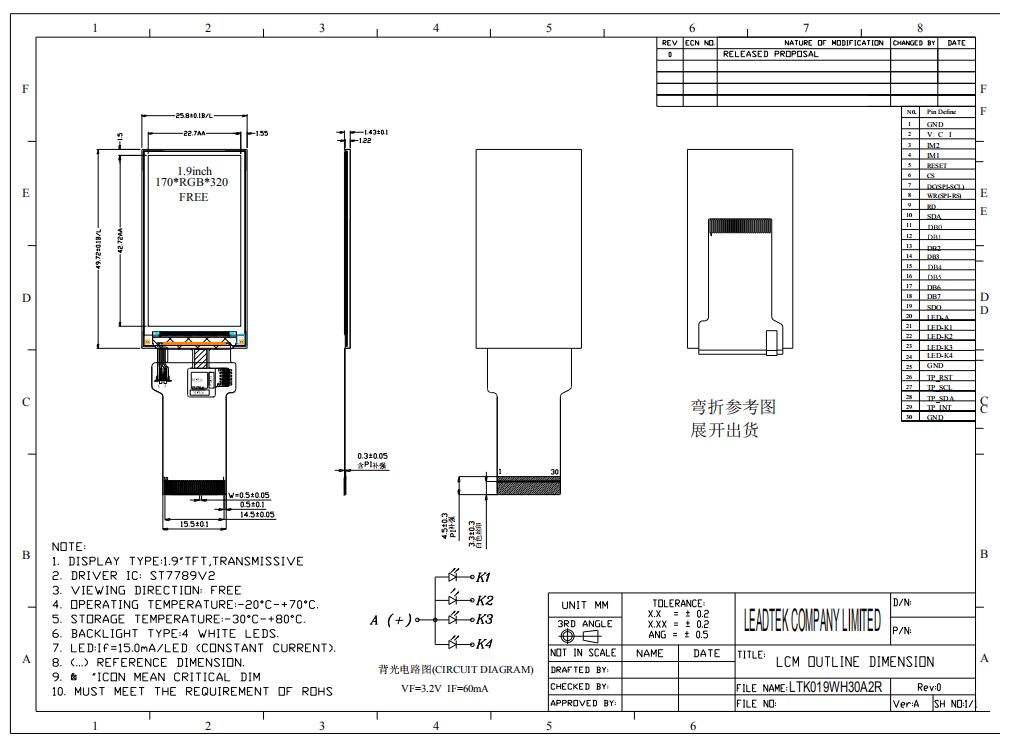

This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 1.9” contains 170(RGB)X320 dots and can display up to 262k colors. (C)
- Product Details
| Display Type: | 1.9''TFT, Normal Black |
| Module PN#: | LTK019WH30A2R |
| View direction: | All |
| Brightness: | 330 nits |
| Operating temperature: | -20℃ ~ +70℃ |
| Storage temperature: |
-30℃ ~ +80℃ |
