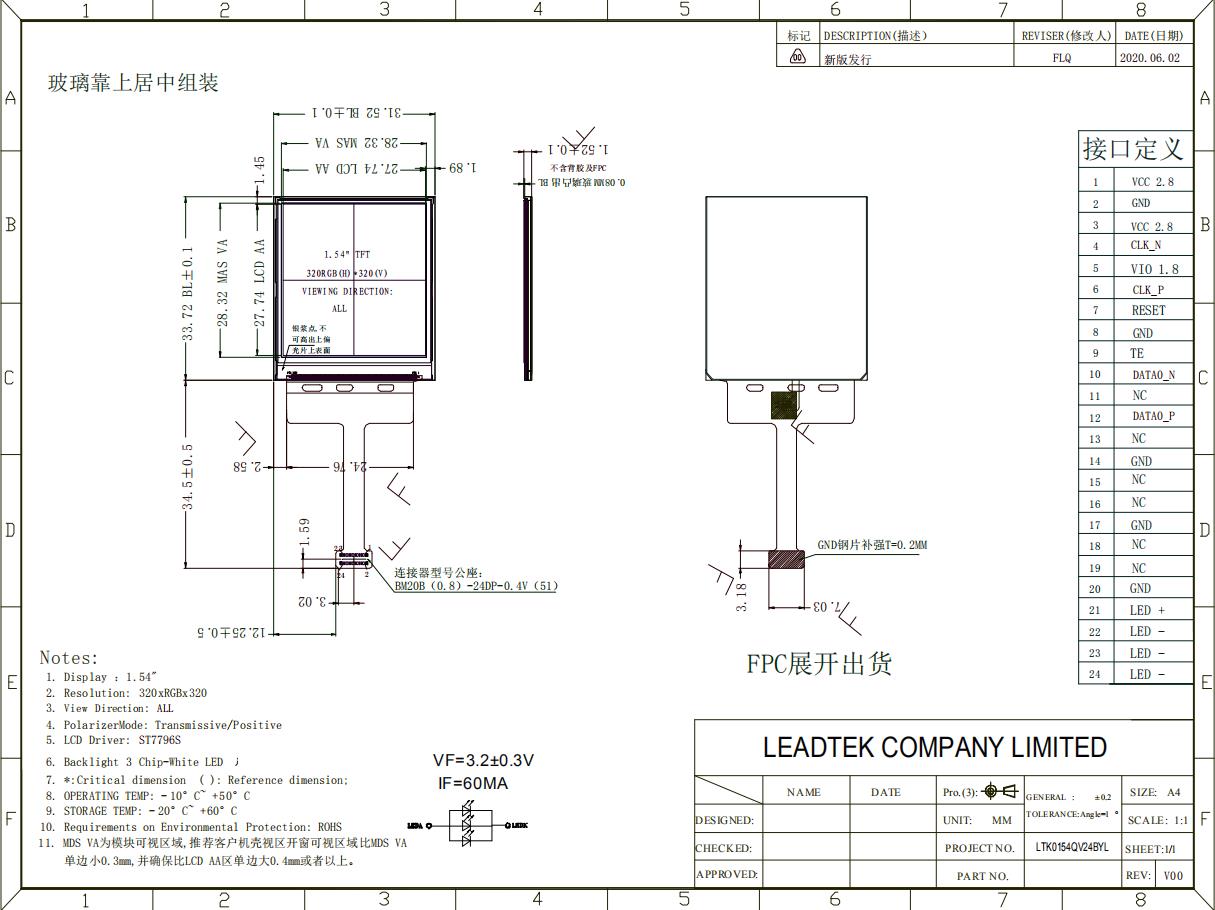

1.54inch Module 320 RGB*320 with MIPI interface TFT display
This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 1.54” contains 320 RGB*320 dots and can display up to 16.7M colors. (E)
- Product Details
|
Model Number |
LTK0154QV24BYL |
|
Size |
1.54'' |
|
Resolution |
320 RGB*320 |
|
Interface |
MIPI |
|
Outline dimension (mm) |
31.52*33.72*1.47 |
|
Brightness |
330 |
|
Active area (mm) |
27.74* 27.74 |
|
Display model |
IPS |
