1.45inch small size 240x320 SPI Compatible MCU interface Normally balck panel
This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 1.45” contains 240(RGB)x320 dots and can display up to 16.7M colors. (C)
- Product Details
|
Model Number |
LTK145QV24A2R |
|
Size |
1.45'' |
|
Display model |
IPS |
|
Resolution |
240x320 |
|
Interface |
SPI Compatible MCU |
|

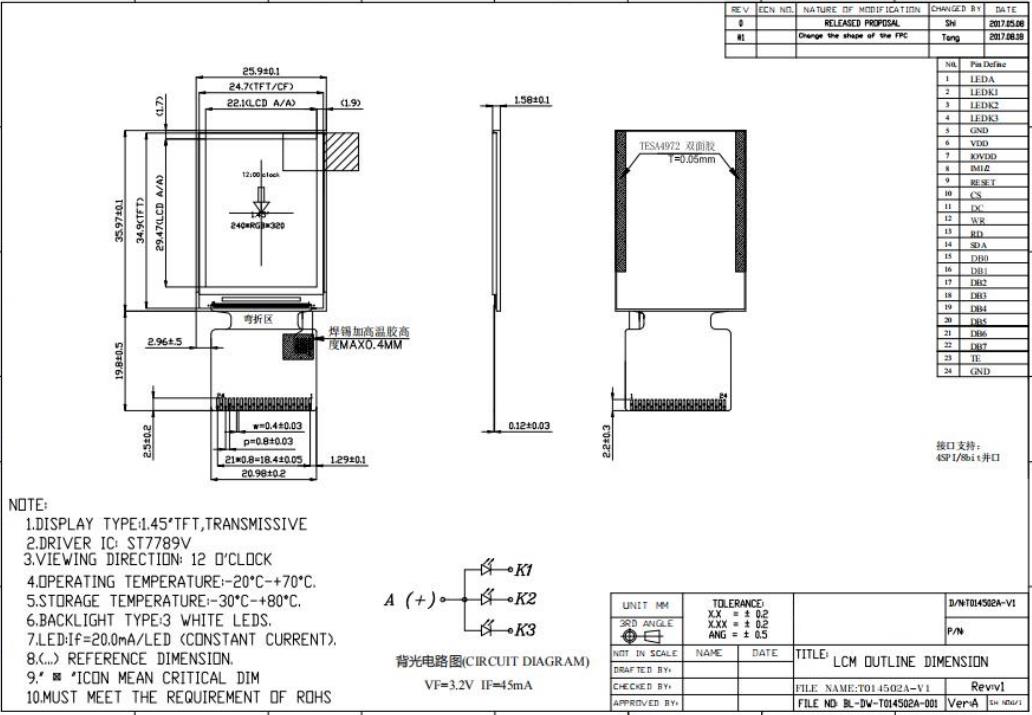

Outline dimension (mm) |
25.9x35.97x1.58 |
|
Active area (mm) |
22.1x29.47 |
|
Brightness (nits) |
320 |
| Operating temperature | -20°C to +70°C |
| Storage temperature |
-30°C to +80°C |
