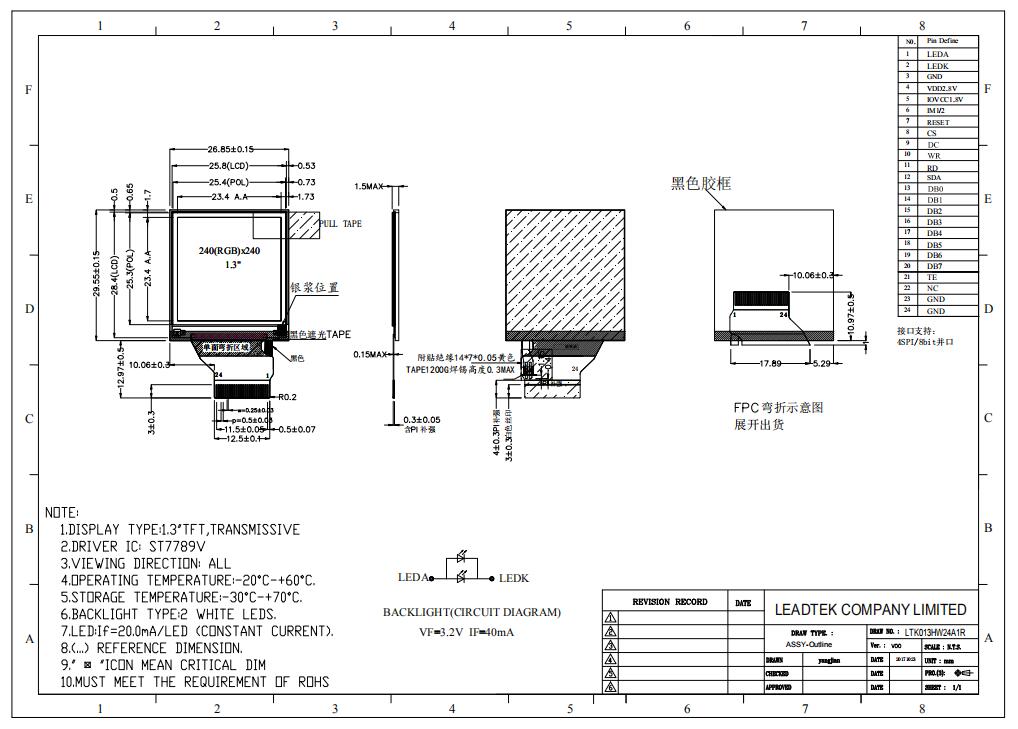

1.3inch 350nits brightness IPS panel 240x240 display with SPI or MCU interface
This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 1.3” contains 240(RGB)x240 dots and can display up to 262k colors. (C)
- Product Details
| Display Type: | 1.3''TFT, Normal White |
| Module PN#: | LTK013HW24A1R |
| View direction: | 80/80/80/80 |
| Brightness: | 350 nits |
| Operating temperature: | -20℃ ~ +60℃ |
| Storage temperature: |
-30℃ ~ +70℃ |
