1.28 inch 176*176 resolution with SPI interface IPS mode display
This display module is a color active matrix TFT(Thin Film Transistor) liquid crystal display
(LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT
LCD module, a driver circuit, and a back-light unit.The resolution of a 1.28” contains
176(RGB)X176 dots and can display up to 64 colors.
(LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT
LCD module, a driver circuit, and a back-light unit.The resolution of a 1.28” contains
176(RGB)X176 dots and can display up to 64 colors.
- Product Details
|
Model: |
LTK0128B1602R |
|
Size: |
1.28'' |
|
Cell Type: |
IPS |
|
Resolution: |
176*176 |
|
Interface: |
SPI |
|

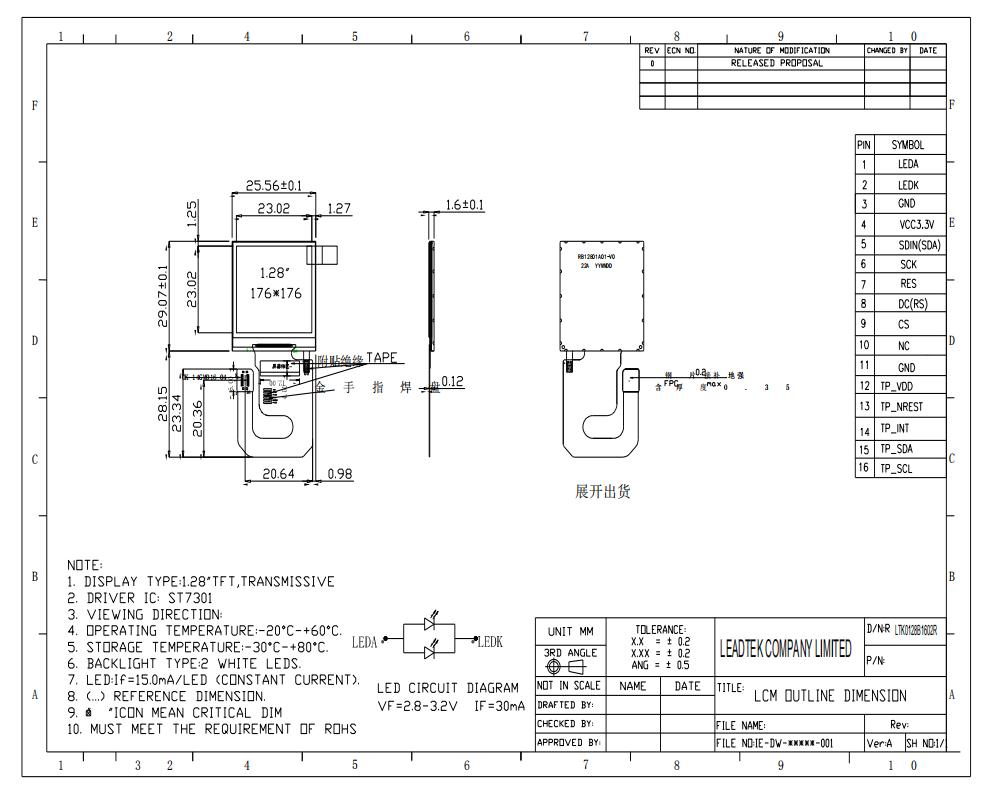

Outline Dimension: |
25.56*29.07*1.6(mm) |
|
Active Area: |
23.02*23.02(mm) |
