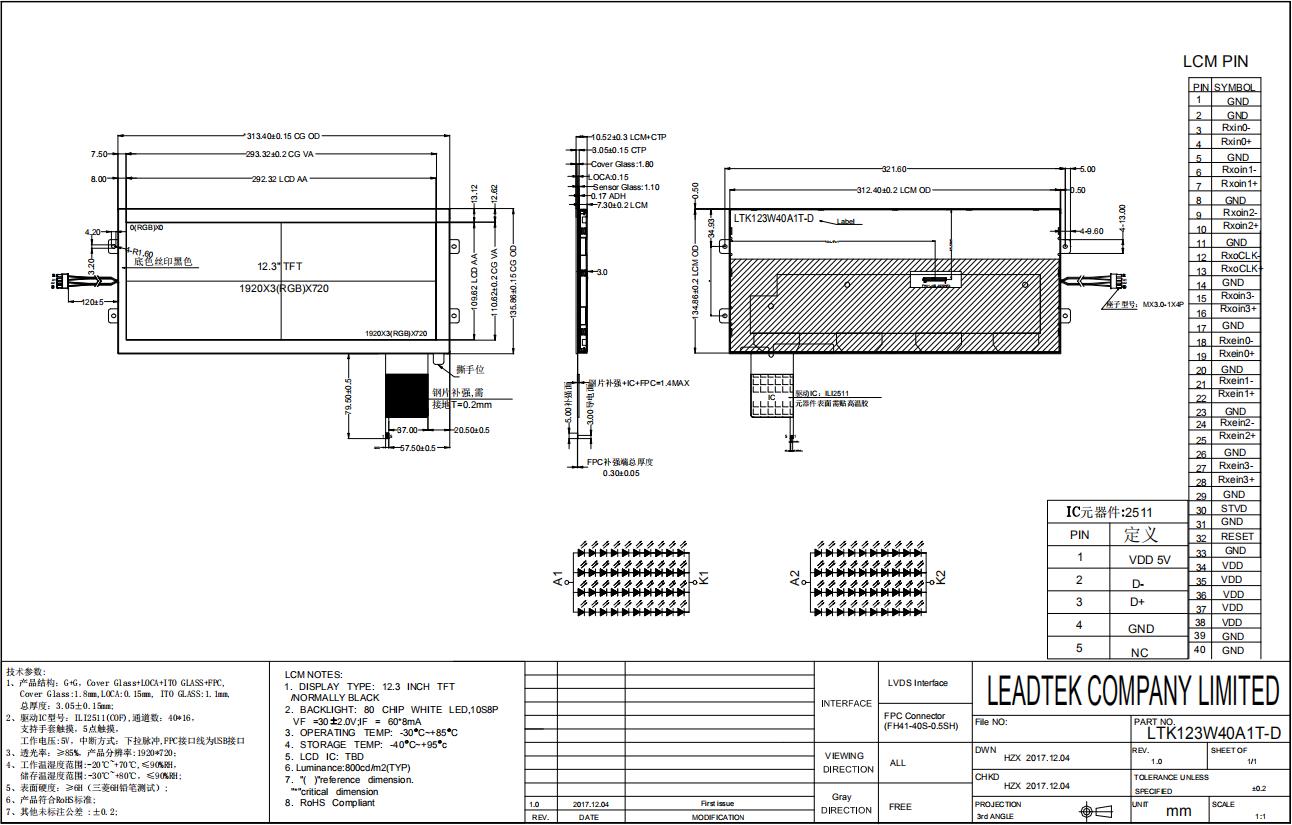

12.3inch Module 1920(RGB)X720 with 2 port LVDS TFT display
1. DISPLAY TYPE: 12.3 INCH TFT/NORMALLY BLACK
2. BACKLIGHT: 80 CHIP WHITE LED,10S8P VF =30 2.0V;IF = 60*8mA
3. OPERATING TEMP: -30 C~+85 C
4. STORAGE TEMP: -40 C~+95 c
5. LCD IC: TBD
6. Luminance:800cd/m2(TYP)
7. RoHS Complian
(E)
2. BACKLIGHT: 80 CHIP WHITE LED,10S8P VF =30 2.0V;IF = 60*8mA
3. OPERATING TEMP: -30 C~+85 C
4. STORAGE TEMP: -40 C~+95 c
5. LCD IC: TBD
6. Luminance:800cd/m2(TYP)
7. RoHS Complian
(E)
- Product Details
|
Model Number |
LTK123W40A1T-D |
|
Size |
12.3'' |
|
Resolution |
1920(RGB)X720 |
|
Interface |
2 port LVDS |
|
Active area (mm) |
292.32X109.62 |
|
Outline dimension (mm) |
308.1X134.86X7.3 |
|
Brightness |
1000 |
|
Display model |
IPS |
