12.1 inch Module 1024(H) x 768(V) with LVDS interface TFT display
Leadtek Display model LTK121H2011W is a color active matrix thin film transistor
(TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching
device. This model is composed of a TFT LCD panel, a driving circuit and a back light
system. This TFT LCD has a 12.1 inch diagonally measured active display area with
XGA (1024 horizontal by 768 vertical pixel) resolution(E).
- Product Details
|
Model Number |
LTK121H2011W |
|
Size |
12.1" |
|
Display model |
IPS |
|
Resolution |
1024(H) x 768(V) |
|
Interface |
LVDS |
|

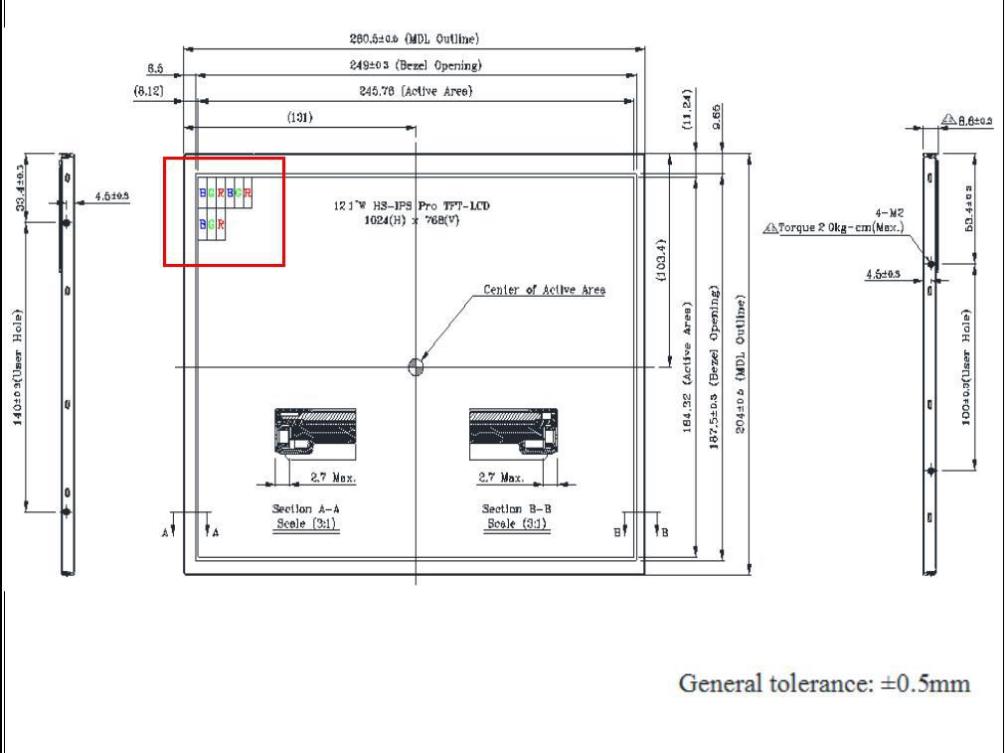

Outline dimension (mm) |
260.5 (H) x 204 (V) x 8.6 |
|
Active area (mm) |
245.76(H)x184.32(V) |
| Brightness |
850 |
