11.6inch TFT LCD with 1920(H) x3(RGB)x 1080 (V) and EDP IPS
LTK116WU30AY color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 11.6 (16:10) inch diagonally measured active display area with (1920 horizontal by 1080 vertical pixel) resolution.（R）
- Product Details
|
Model number: |
LTK116WU30AY |
|
Size: |
11.6" |
|
Display mode: |
IPS |
|
Resolution: |
1920(H) x3(RGB)x 1080 (V) |
|
Interface: |
EDP |
|

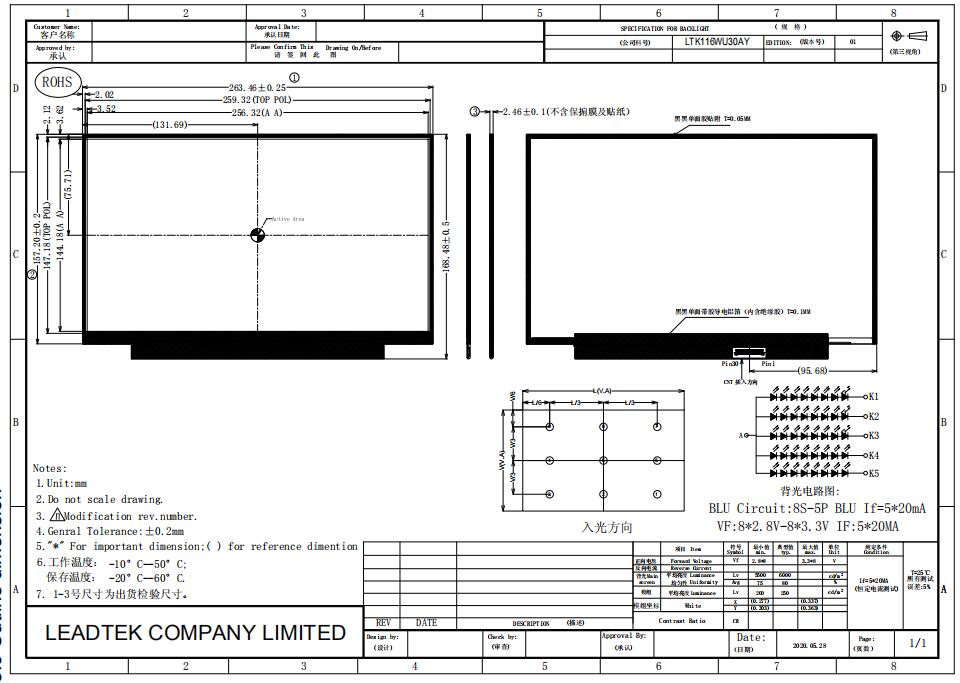

Outline dimensions: |
263.46(H) x 157.20V) x2.46 (D) mm |
|
Active area: |
256.32(H) x 144.18 (V) mm |
|
Brightness: |
250 |
