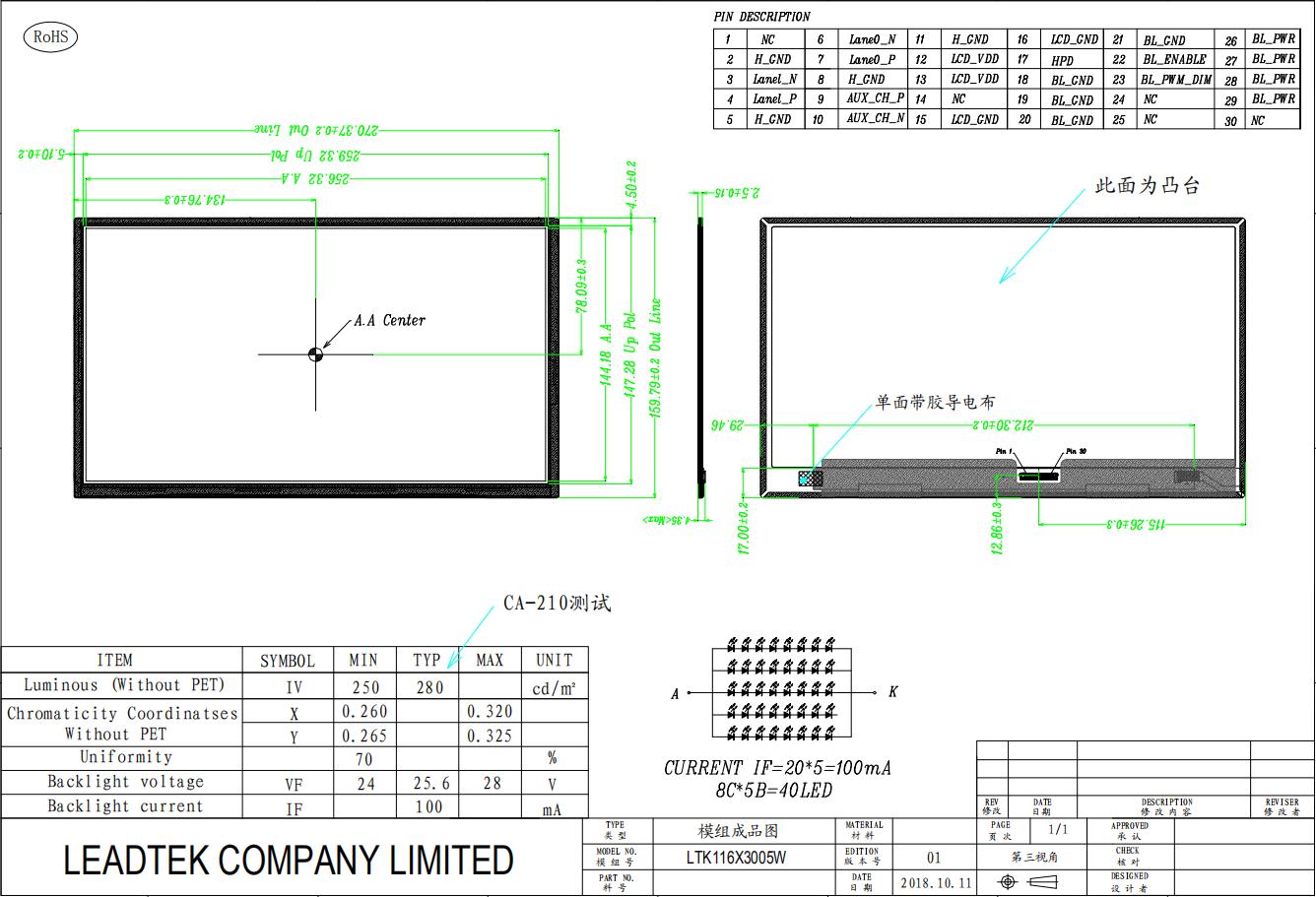

11.6inch Module 1920(H) x3(RGB)x 1080 (V) with EDP interface TFT display
LTK116X3005W color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 11.6 (16:10) inch diagonally measured active display area with (1920 horizontal by 1080 vertical pixel) resolution.(E)
- Product Details
|
Model Number |
LTK116X3005W |
|
Size |
11.6" |
|
Display model |
IPS |
|
Resolution |
1920(H) x3(RGB)x 1080 (V) |
|
Interface |
EDP |
|
Outline dimension (mm) |
270.37(H) x 159.79V) x2.5 (D) |
|
Active area (mm) |
256.32(H) x 144.18 (V) |
|
Brightness |
280 |
