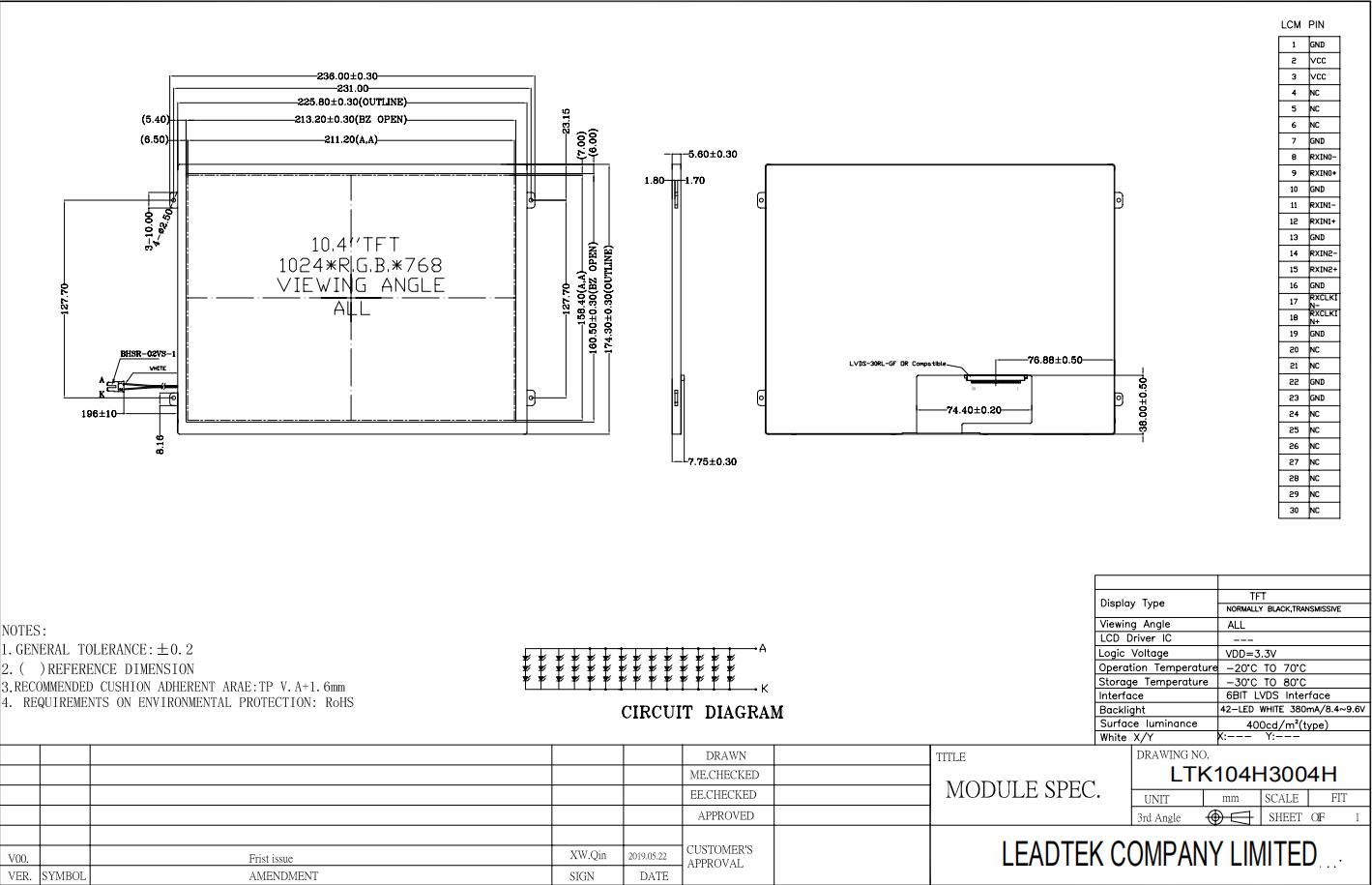

10.4inch Module 1024(horizontal)*768(Vertical) with LVDS interface TFT display
1. GENERAL TOLERANCE: ±0.2
2. RECOMMENDED CUSHION ADHERENT ARAE: TP V.A+1.6mm
3. REQUIREMENTS ON ENVIRONMENTAL PROTECTION: RoHS
（E）
2. RECOMMENDED CUSHION ADHERENT ARAE: TP V.A+1.6mm
3. REQUIREMENTS ON ENVIRONMENTAL PROTECTION: RoHS
（E）
- Product Details
|
Model Number |
LTK104H3004H |
|
Size |
10.4'' |
|
Display model |
IPS |
|
Resolution |
1024(horizontal)*768(Vertical) |
|
Interface |
LVDS |
|
Outline dimension (mm) |
225.8 (H) x 174.3 (V) x 5.6 (D) |
|
Active area (mm) |
211.2(H) x 158.4(V) |
|
Brightness |
400 |
