0.96 Inch FSTN LCD Display with 128*64 Resolution TN mode
This display module is a transmissive type color active matrix TFT(Thin Film Transistor)
liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 0.96” contains 128(RGB)X63 dots.(W)
liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 0.96” contains 128(RGB)X63 dots.(W)
- Product Details
|
Model Number |
LTK096B1006R |
|
Size |
0.96" |
|
Resolution |
128*64 |
|
Interface |
/ |
|

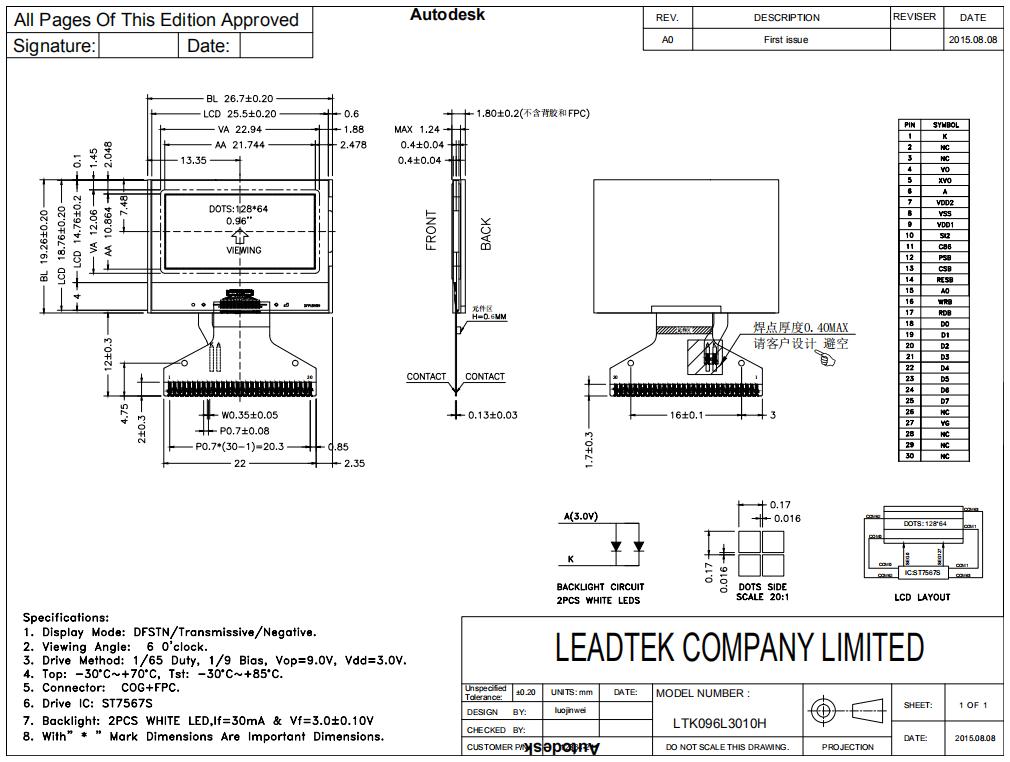

Outline dimension (mm) |
25.5*18.76*1.8 |
|
Active area (mm) |
21.744*10.864 |
|
Brightness |
/ |
|
Display model |
TN |
