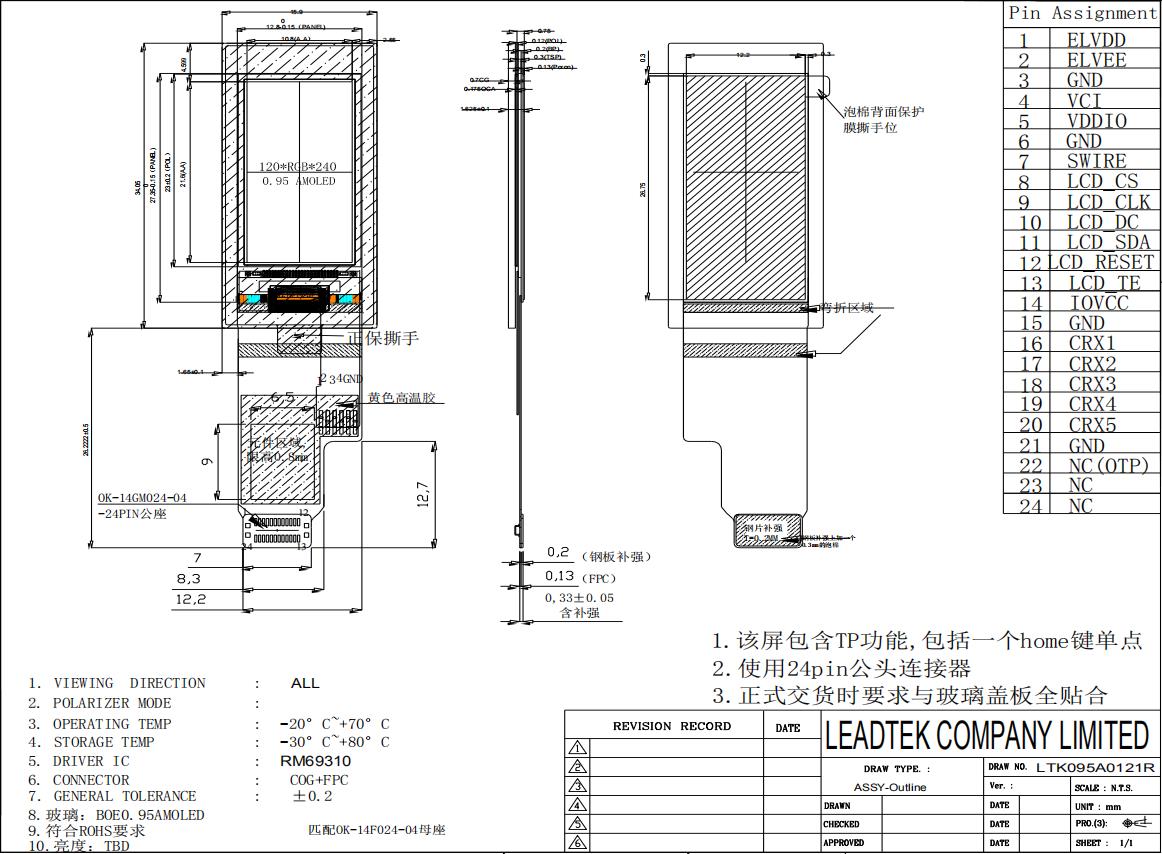

0.95inch Module 120RGB x 240 with 4-SPI interface TFT display
1. VIEWING DIRECTION : ALL
2. POLARIZER MODE :
3. OPERATING TEMP : -20°C~+70°C
4. STORAGE TEMP : -30°C~+80°C
5. DRIVER IC : RM69310
6. CONNECTOR : COG+FPC
7. GENERAL TOLERANCE : ±0.2
8.CELL：BOE0.95AMOLED
2. POLARIZER MODE :
3. OPERATING TEMP : -20°C~+70°C
4. STORAGE TEMP : -30°C~+80°C
5. DRIVER IC : RM69310
6. CONNECTOR : COG+FPC
7. GENERAL TOLERANCE : ±0.2
8.CELL：BOE0.95AMOLED
9.Birghtness：350
（E）
- Product Details
|
Model Number |
LTK095A0121R |
|
Size |
0.95” |
|
Display model |
IPS |
|
Resolution |
120RGB x 240 |
|
Interface |
4-SPI |
|
Outline dimension (mm) |
12.8(H) ×27.35(V)×0.75(T) |
|
Active area (mm) |
10.8 (H)×21.6(V) |
|
Brightness |
350 |
