7" TFT LCD Modules with 800 x 480 Resolution and 200 nits Brightness
1) Construction: 7〞а-Si color TFT-LCD, white LED backlight and FPC.
2) LCD:
2.1 Amorphous-TFT 7-inch display, transmissive, normally white type.
2.2 800(RGB)×480 dots Matrix.
2.3 Narrow-contact ledge technique.
3) RGB interface.
4) Video signal interface: Parallel RGB.
5) All the raw material are RoHS complian
2) LCD:
2.1 Amorphous-TFT 7-inch display, transmissive, normally white type.
2.2 800(RGB)×480 dots Matrix.
2.3 Narrow-contact ledge technique.
3) RGB interface.
4) Video signal interface: Parallel RGB.
5) All the raw material are RoHS complian
- Product Details
| Model no: | LTK70B60E33 |
| Size: | 7.0" |
| Cell: | BOE |
| Cell type: | TN |
| Resolution: | 800*480 |
| Interface: | 24bit RGB |

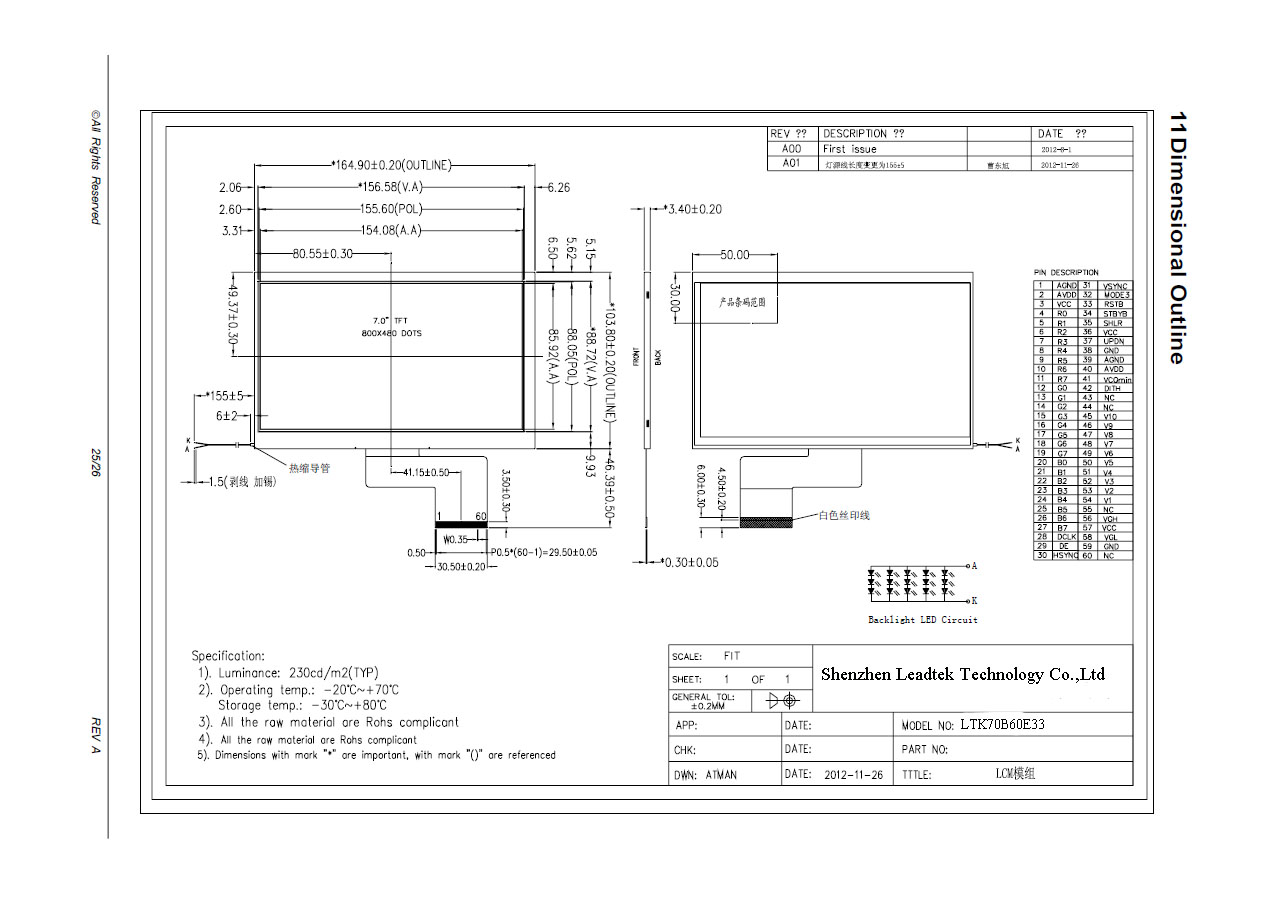

| Outline dimension (mm): | 164.9(W)x103.8(H)x3.4(T) |
| Active area (mm): | 154.08(W)x85.92(H) |
| Brightness (nits): | 200 |
| W/W/O TP: | W/O TP |
