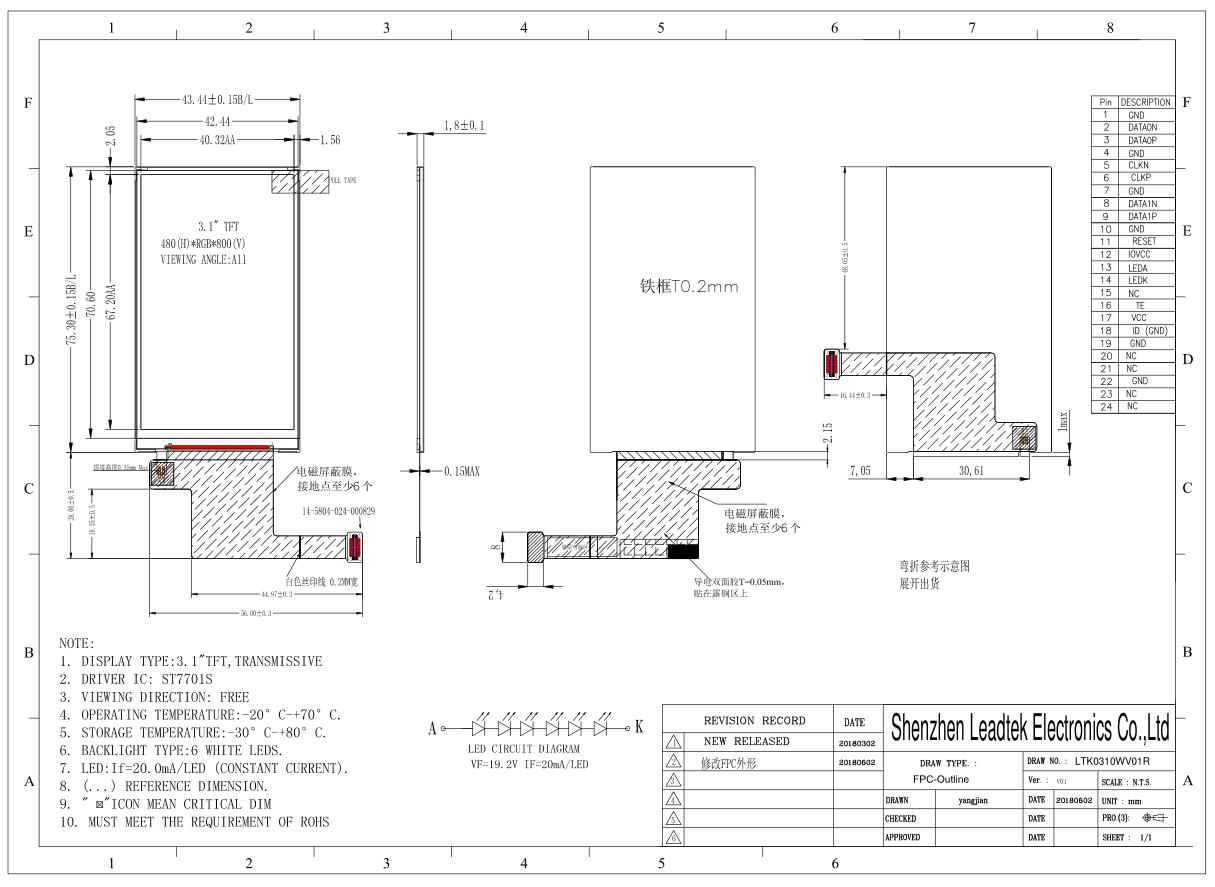

TFT LCD 3.1inch MIPI LCM Screen 480x800 Panel
1. DISPLAY TYPE:3.1''TFT, TRANSMISSIVE
2. DRIVER IC: ST7701S
3. VIEWING DIRECTION: FREE
4. OPERATING TEMPERATURE:-20℃-+70℃
5. STORAGE TEMPERATURE:-30℃-+80℃
6. BACKLIGHT TYPE: 6 WHITE LEDS
7. LED:IF=20.0mA/LED (CONSTANT CURRENT)
8.MUST MEET THE REQUIREMENT OF ROHS
2. DRIVER IC: ST7701S
3. VIEWING DIRECTION: FREE
4. OPERATING TEMPERATURE:-20℃-+70℃
5. STORAGE TEMPERATURE:-30℃-+80℃
6. BACKLIGHT TYPE: 6 WHITE LEDS
7. LED:IF=20.0mA/LED (CONSTANT CURRENT)
8.MUST MEET THE REQUIREMENT OF ROHS
- Product Details
| Model: |
LTK0310WV01R |
| Size: | 3.1'' |
| Cell Type: | IPS |
| Resolution: | 480X800 |
| Interface: |
2lane-MIPI |
| Outline Dimension: |
43.44(H) ×75.30(V)×1.8(T)mm |
| Active Area: |
40.32 (H)×67.20(V)mm |
| Brightness: |
380nits |
| Touch Panel: | No Touch |
| Contrast Ratio: | 600 |
