TFT LCD 10.1inch IPS Display 1280*800 Resolution

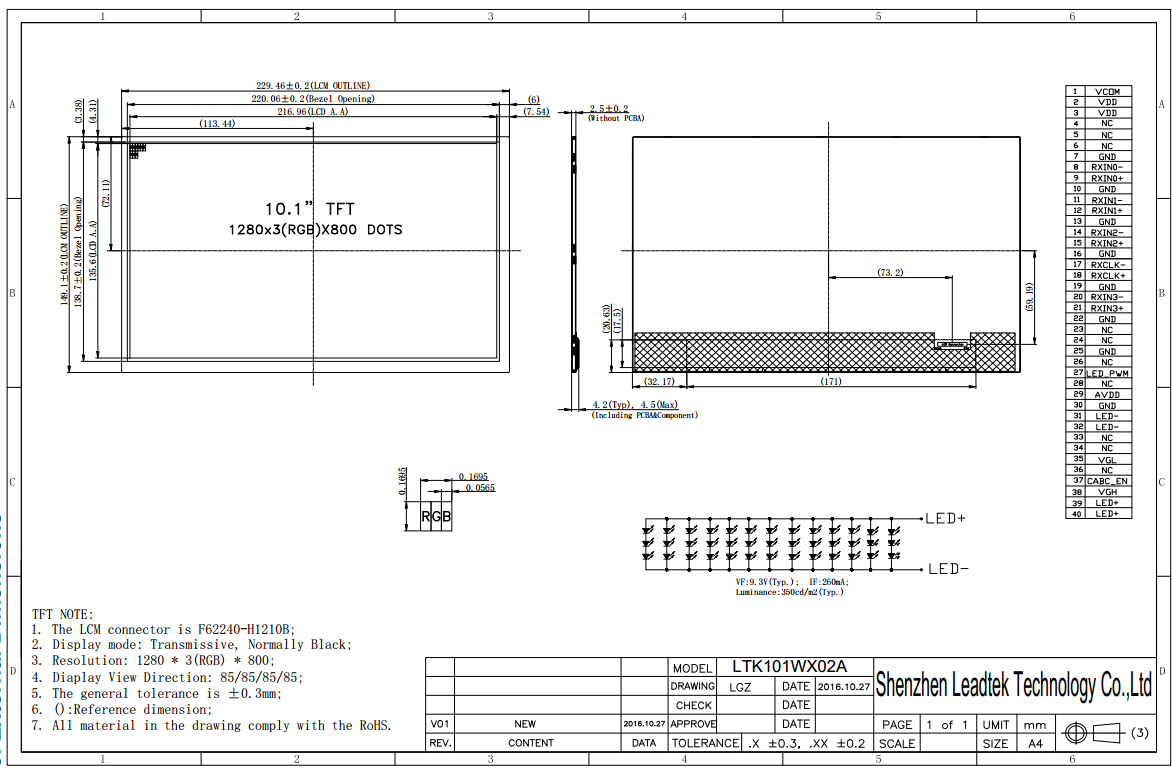

1. The LCM connector is F62240-H1210B;
2. Display mode: Transmissive, Normally Black;
3. Resolution: 1280 * 3(RGB) * 800;
4. Diaplay View Direction: 85/85/85/85;
5. The general tolerance is ±0.3mm;
6. All material in the drawing comply with the RoHS
2. Display mode: Transmissive, Normally Black;
3. Resolution: 1280 * 3(RGB) * 800;
4. Diaplay View Direction: 85/85/85/85;
5. The general tolerance is ±0.3mm;
6. All material in the drawing comply with the RoHS
- Product Details
| Model No: |
LTK101WX02A |
| Size: |
10.1" |
| Cell: |
/ |
| Cell Type: | IPS |
| Resolution: | 1280*800 |
| Interface: |
LVDS |
| Outline Dimension: |
143*228.6*2.5 |
| Active Area: |
135.36*216.58 |
| Brightness: |
350 |
| With/Without TP: | Without |
