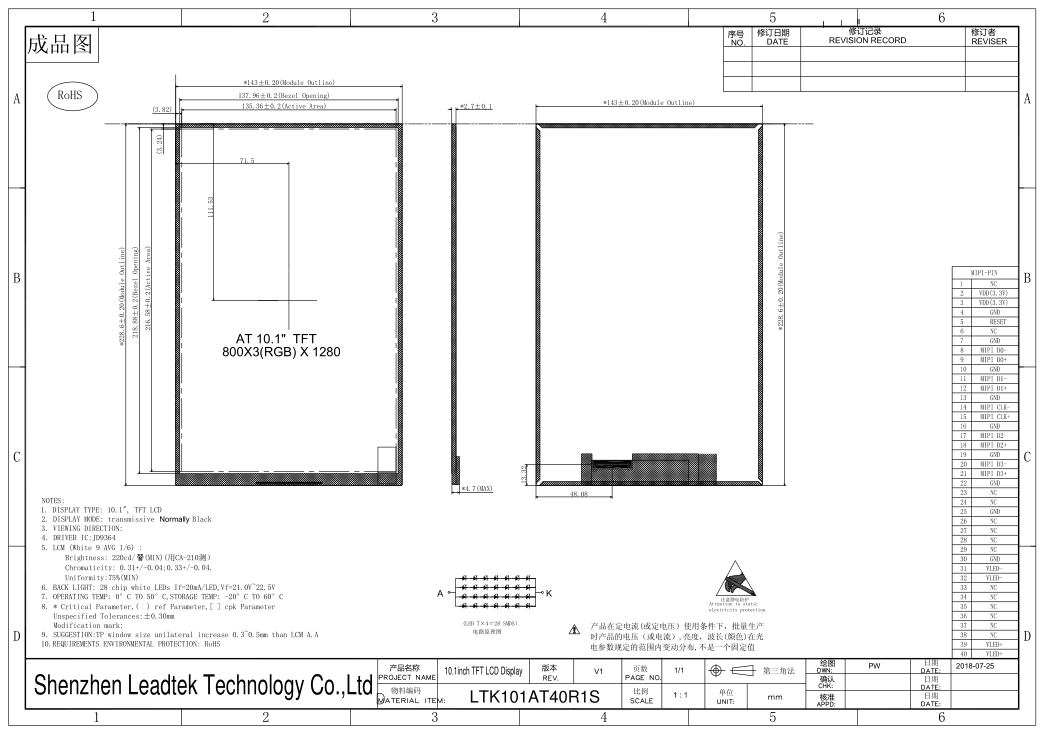

Professional TFT LCM 10.1inch Portrait Screen TFT Module LCD panel
1. DISPLAY TYPE: 10.1", TFT LCD
2. DISPLAY MODE: transmissive Normally Black
3. VIEWING DIRECTION:
4. DRIVER IC:JD9364
5. LCM (White 9 AVG 1/6) :
Brightness: 220cd (MIN)( CA-210test）
Chromaticity: 0.31+/-0.04;0.33+/-0.04.
Uniformity:75%(MIN)
6. BACK LIGHT: 28 chip white LEDs If=20mA/LED,Vf=21.0V~22.5V
7. OPERATING TEMP: 0°C TO 50°C,STORAGE TEMP: -20°C TO 60°C
8. REQUIREMENTS ENVIRONMENTAL PROTECTION: RoHS
2. DISPLAY MODE: transmissive Normally Black
3. VIEWING DIRECTION:
4. DRIVER IC:JD9364
5. LCM (White 9 AVG 1/6) :
Brightness: 220cd (MIN)( CA-210test）
Chromaticity: 0.31+/-0.04;0.33+/-0.04.
Uniformity:75%(MIN)
6. BACK LIGHT: 28 chip white LEDs If=20mA/LED,Vf=21.0V~22.5V
7. OPERATING TEMP: 0°C TO 50°C,STORAGE TEMP: -20°C TO 60°C
8. REQUIREMENTS ENVIRONMENTAL PROTECTION: RoHS
- Product Details
| Model No: |
LTK101AT40R1S |
| Size: | 10.1inch |
| Cell: |
Innolux |
| Cell Type: | IPS |
| Resolution: |
800x1280 |
| Interface: |
MIPI |
| Outline Dimension: |
143.0 (W)×228.6 (H)×2.60(D)mm |
| Active Area: |
135.36(H)x 216.58 (V) |
| Brightness: | 250nits |
| With/without TP: | Without TP |
