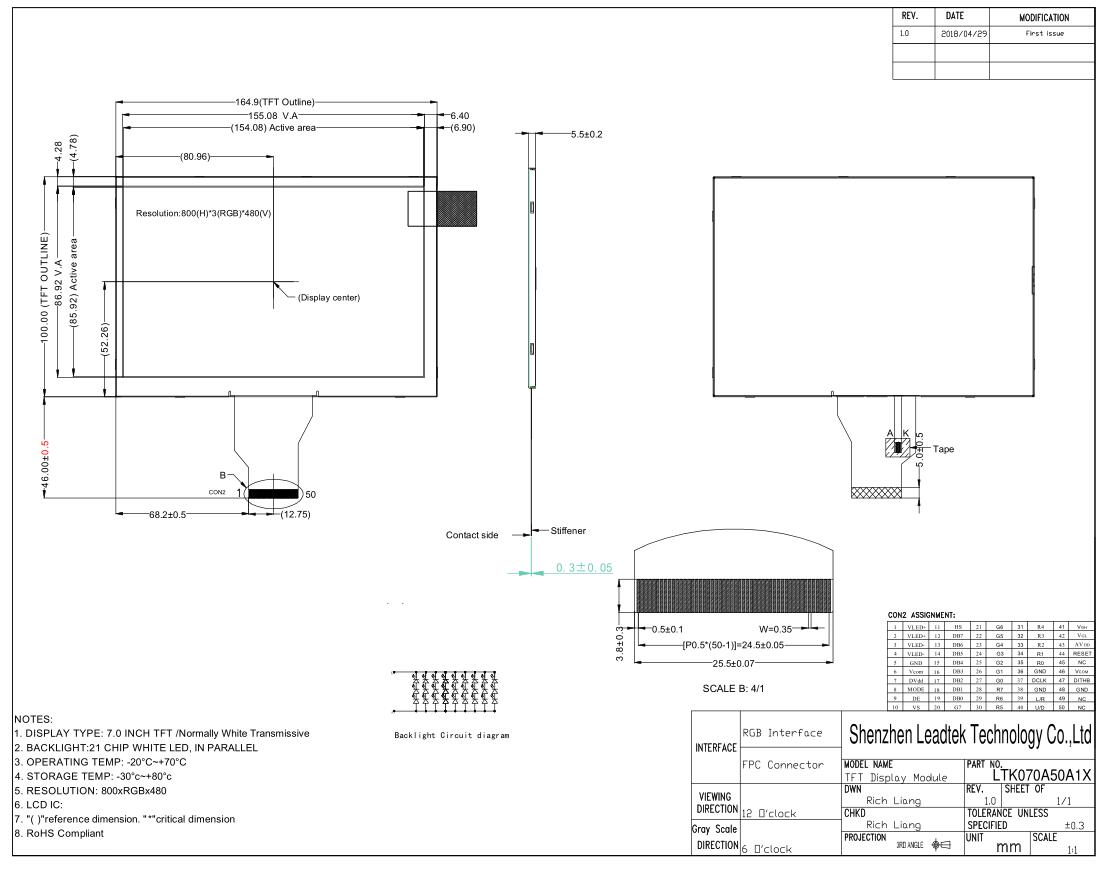

LCD Panel 7inch 800x480 LCM Display
1. DISPLAY TYPE: 7.0 INCH TFT /Normally White Transmissive
2. BACKLIGHT:21 CHIP WHITE LED, IN PARALLEL
3. OPERATING TEMP: -20°C~+70°C
4. STORAGE TEMP: -30°c~+80°c
5. RESOLUTION: 800xRGBx480
6. LCD IC:TBD
7. RoHS Compliant
2. BACKLIGHT:21 CHIP WHITE LED, IN PARALLEL
3. OPERATING TEMP: -20°C~+70°C
4. STORAGE TEMP: -30°c~+80°c
5. RESOLUTION: 800xRGBx480
6. LCD IC:TBD
7. RoHS Compliant
- Product Details
| Model: |
LTK070A50A1X |
| Size: | 7.0'' |
| Cell Type: | TN |
| Resolution: |
800(RGB)X480 |
| Interface: |
RGB 24bit |
| Outline Dimension: |
164.9*100.0*3.5mm |
| Active Area: |
154.08 x 85.92mm |
| Brightness: | 1000nits |
| Touch Panel: | No Touch |
| Contrast Radio: | 500 |
