3.5" 320×480 TFT Display, with Resistive TP, Support RGB/SPI Interface
LCD type: 3.5’’ TFT
Dot arrangement 320(RGB)×480 dots
Color filter array RGB vertical stripe
Display mode TN/transmission/normally white
Viewing direction: 6 o'clock
Driver IC: HX8357D

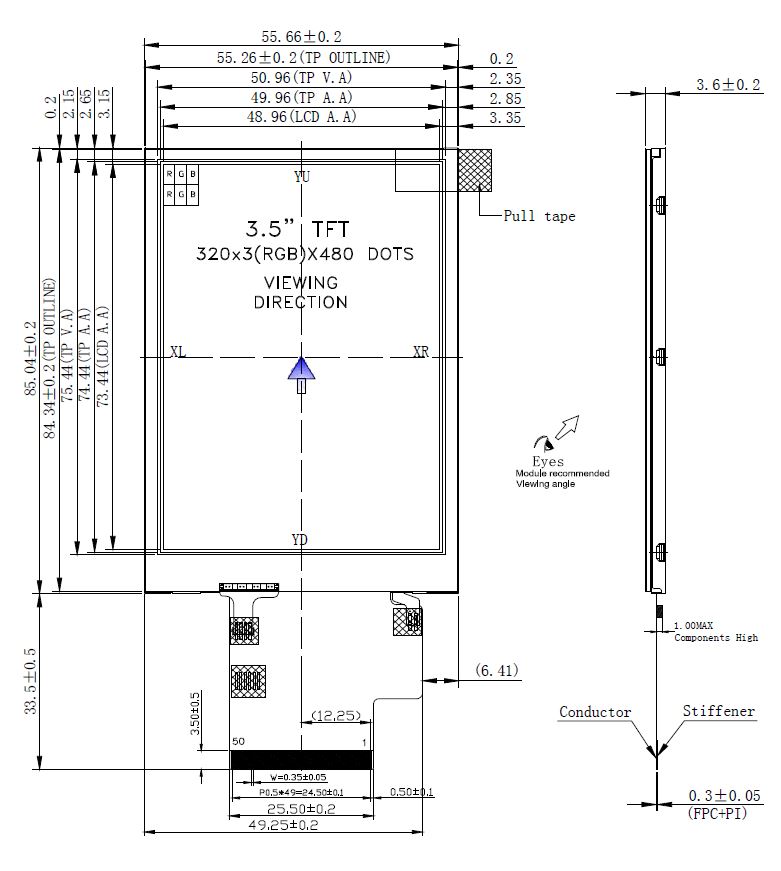

Module size: 55.66(W)×85.04(H)×3.6(T)mm
Active area: 48.96(W)×73.44(H)mm
Dot pitch: 0.153(W)×0.153(H)mm
Interface
4-lines_8 bits/3-line_9 bits SPI
8-/9-/16-/18-bit 8080-series system interface
16-/18-bit RGB interface
Operating temperature: -20° - +70°C
Storage temperature: -30° - +80°C
Back light 6 white LED in serial
Dot arrangement 320(RGB)×480 dots
Color filter array RGB vertical stripe
Display mode TN/transmission/normally white
Viewing direction: 6 o'clock
Driver IC: HX8357D
Module size: 55.66(W)×85.04(H)×3.6(T)mm
Active area: 48.96(W)×73.44(H)mm
Dot pitch: 0.153(W)×0.153(H)mm
Interface
4-lines_8 bits/3-line_9 bits SPI
8-/9-/16-/18-bit 8080-series system interface
16-/18-bit RGB interface
Operating temperature: -20° - +70°C
Storage temperature: -30° - +80°C
Back light 6 white LED in serial
- Product Details
Model No: | LTK350HV15-T |
Size: | 3.5" |
Cell: | HSD |
Cell type: | TN |
Resolution: | 320×480 |
Interface: | SPI/RGB |
Outline dimension(mm): | 55.66(W)×85.04(H)×3.6(T) |
Active area(mm): | 48.96(W)×73.44(H) |
Brightness(nits): | 350 |
W/W/O TP: | With RTP |
