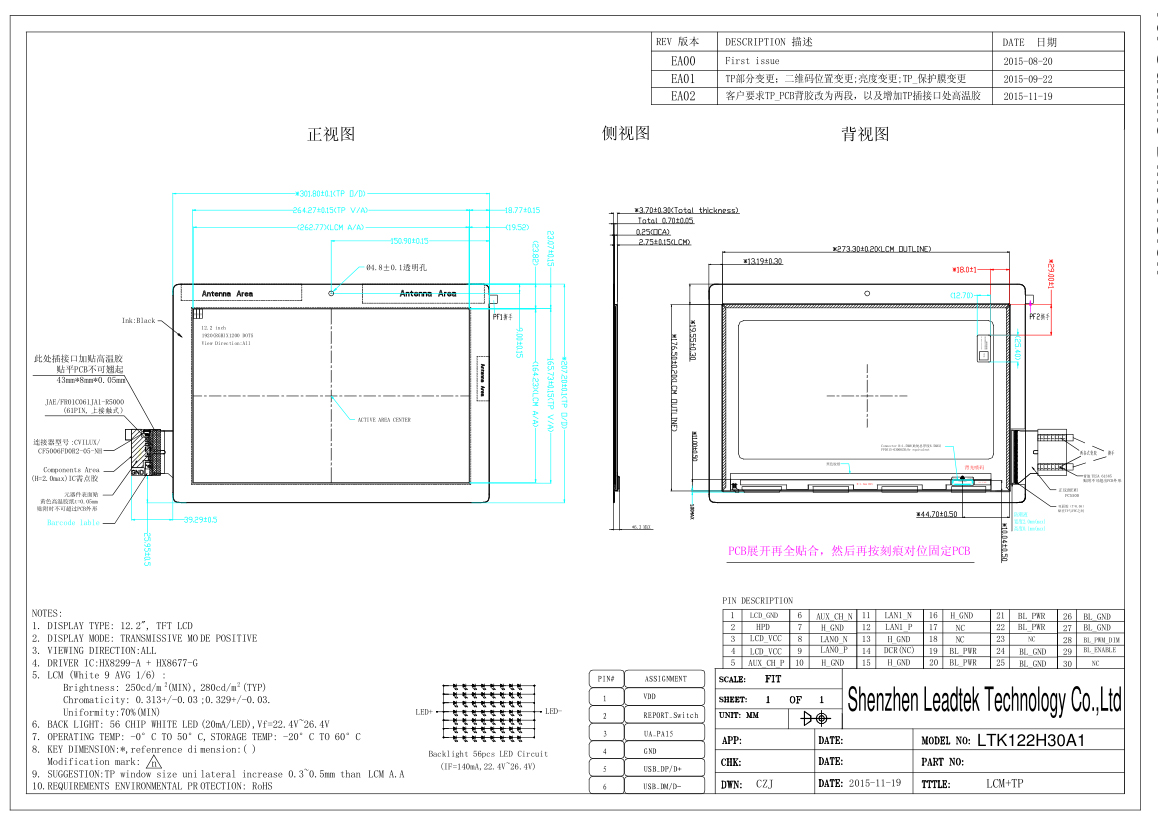

12.2-inch 1920X1200 TFT LCD modules with eDP Interface for 2-in-1 Tablet
- Display type: 12.2", TFT LCD
- Contrast ratio:800/1 (typ), NTSC: 70% (typ), viewing angle range: U/D/L/R (80/80/80/80)
- Back light: 56 chip white LED (20mA/LED),Vf=22.4V-26.4V
- View direction: all
- Luminance (9 AVG): 190cd/m2 (min), 220cd/m2 (typ)
- IC: HX8299-A + HX8677-G
- All the raw materials are RoHS compliant
- T-CON connector: FP0515-03000ZM, or equivalent
- LCM chromaticity (white): 0.313+/-0.03, 0.329+/-0.03.
- Uniformity: 70% (min)
- Product Details
| Model No: | LTK122H30A1 |
| Size: | 12.2'' |
| Cell: | Samsung |
| Cell type: | IPS |
| Resolution: | 1920X1200 |
| Interface: | EDP |
| Outline dimension(mm): | 301.8 (H)X207.2 (V)X3.7 (T) |
| Active area(mm): | 262.7712 (H)X164.232 (V) |
| Brightness(nits): | 320 |
| W/W/O TP: | W/O TP |
